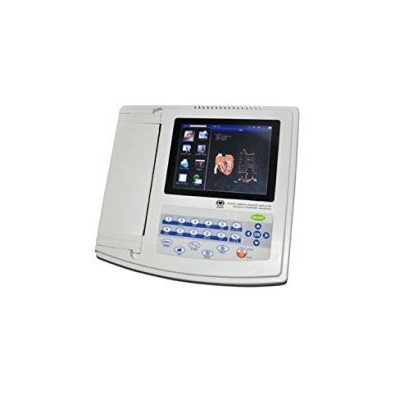

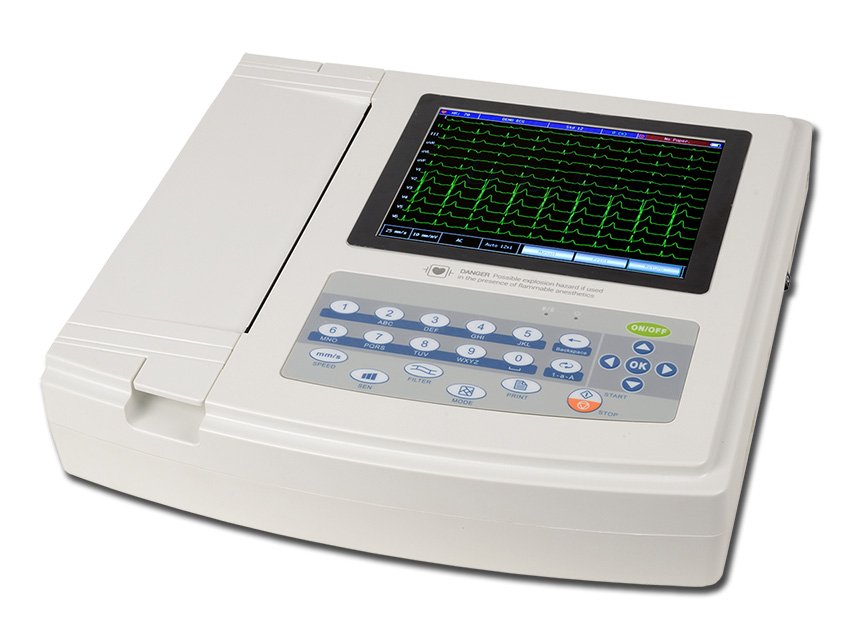

Contec ECG 1200G Electrocardiograph
Product Description
Model:ECG1200G Brand:CONTEC
Features
2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
3)Multiply printing modes and formats, including auto 12×1, auto 6×2+1, auto 6×2+1_H, auto 6×2, auto 6x2_H, auto 3×4+1, auto 3×4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
4)Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
5)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
6)Built-in memory stores up to 1000 cases, convenient for case review and statistic.
7)Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
8)In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.
| Screen size | 8 inches |
| Leads | 12 leads |
| Input way | Floating and defibrillation protection |
| Lead | Standard 12 leads(model:BIP0057) |
| Patient leak current | <10µA |
| Input impedance | ≥50MΩ |
| Frequency response | 0.05Hz~150Hz(-3dB) |
| Time constant | Time constant>3.2s |
| CMRR | >60dB, >100dB( Adding filter) |
| EMG interference filter | 35Hz(-3dB) |
| Recording way | Thermal printing system |
| Specification of recording paper | 210mm(W)*20m(L) high-speed thermal paper |
| Paper speed | Auto record: 25mm/s, 50mm/s, error:±5% |
| Rhythm record: 25mm/s, 50mm/s, error:±5% | |
| Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5% | |
| Sensitivity selections | 2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV. |
| Auto record | Record setup according to auto record format and mode, automatically changing leads, measuring and analysing. |
| Rhythm record | Record setup according to rhythm record format and mode, automatically measuring and analysing. |
| Manual record | Record setup according to manual record format, manually changing leads. |
| Measurement parameters | HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P A*is, QRS A*is, T A*is, R(V5) , S(V1) , R(V5)+S(V1) |
| Product safety type | Class I CF applied part; there is defibrillation and pacing protection circuit in it. |
| Enduring polarization voltage | ±300mV |
| Noise level | ≤15µVp-p |
| Fuse specification | 2 pcs φ5*20mm AC time lag; T1.6A/250V(Power supply 220V) |
| Size | 340mm(L)*320mm(W)*85mm(H) |
| Net Weight | 3.2Kg |
Standard:
-A lead cable
-A limb electrode
-A chest electrode
-A thermal recording paper
-A power cord
-An earth wire
-A user manual
Optional:
-ECG-Sync software+USB cable
-ECG electrode
-Bag
-Conductive paste
-USB cable
-3G card
-Wi-Fi card
-Remote Operation Guide
